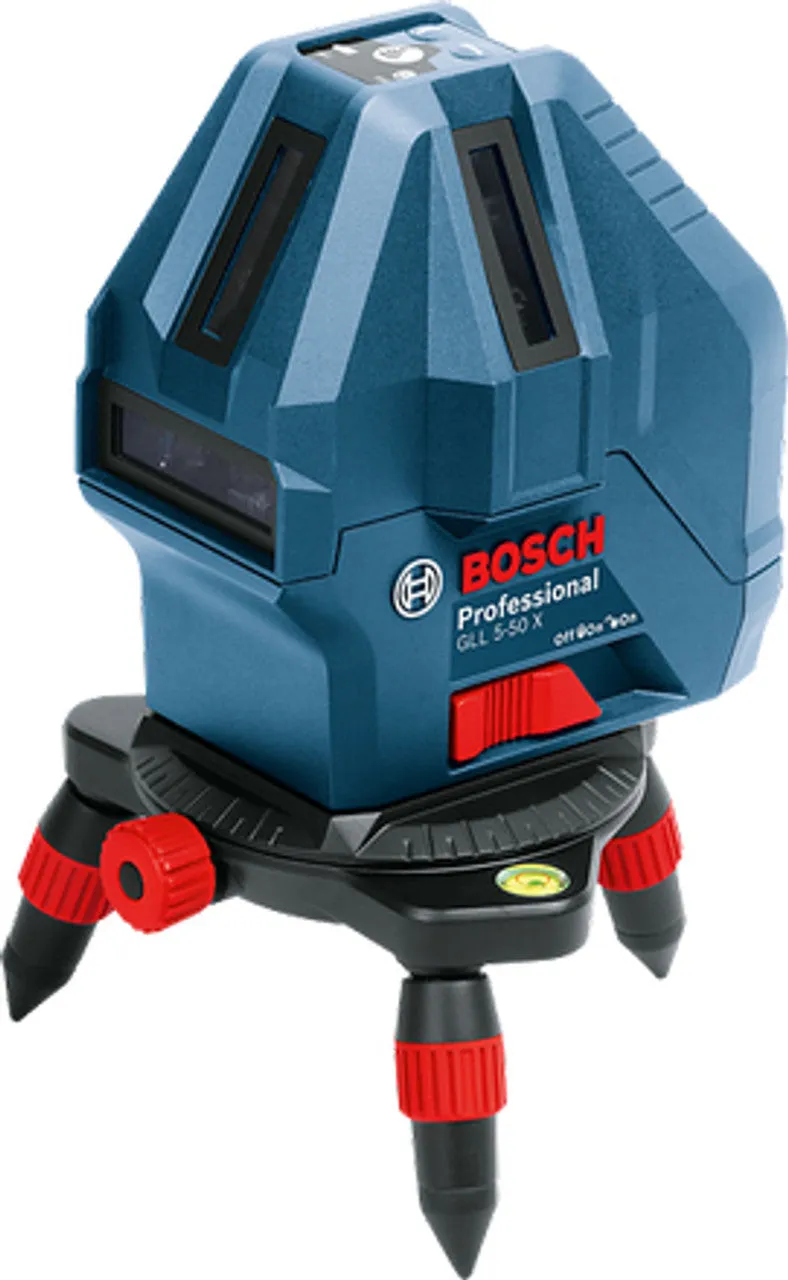

Bosch Professional Line Laser Bosch GLL 5-50 X Gibadi is the distributor of Bosch Power tools in Nigeria. This Bosch Professional Line Laser Bosch GLL 5-50 X has Greater Visibility - Double line visibility on front cross for the optimum working performance, Compact - Light and easy-to-carry, Robust - Thanks to the highly sophisticated Bosch pendulum precision system (PPS) which further enhancing maximum tool protection and levelling accuracy. GLL 5-50 X Professional comes complete with: ItemIncluded Protective Bag Tripod adapter spare part number 1 609 203 C10 4 x 1.5 V LR6 battery AA Technical data Specification overview: Laser diode 630 – 650 nm, < 1mW Operating temperature -10 – 45 °C Storage temperature -20 – 70 °C Laser class 2 Working range 15 m Working range with receiver 50 m Accuracy ± 0.2 mm/m Working range of laser points, max. 5 m (bottom) Angular accuracy (between 0 – 90° angle) ± 0,2 mm/m Self-levelling range ± 3° Levelling time 4 s Dust and splash protection IP 54 Power supply 4 x 1.5 V LR6 (AA) Operating time (max.) 24 h Tripod thread 5/8" Weight, approx. 0.5 kg Colour of laser line red Self Levelling 3° Self-levelling ± 3° Levelling accuracy 0.2 mm Levelling accuracy ± 0.2 mm/m Pendulum Prec. System Precision pendulum system consists of high-precision, hardened shaped parts and optics with shock absorber Intell. Current Management Intelligent current management helps to monitor the laser diode temperature and to maximise laser visibility without overheating Detach. Rotating Platform Rotating mini tripod makes fine positioning easier Working range receiver Range with receiver up to 50 m Laser scheme packaging Accurate alignment due to one horizontal laser line and two vertical 360° laser lines User Manual Find here the user manual: Bosch GLL 5-50 X Professional: User Manual (PDF 16.7 MB) Contact us for further details
