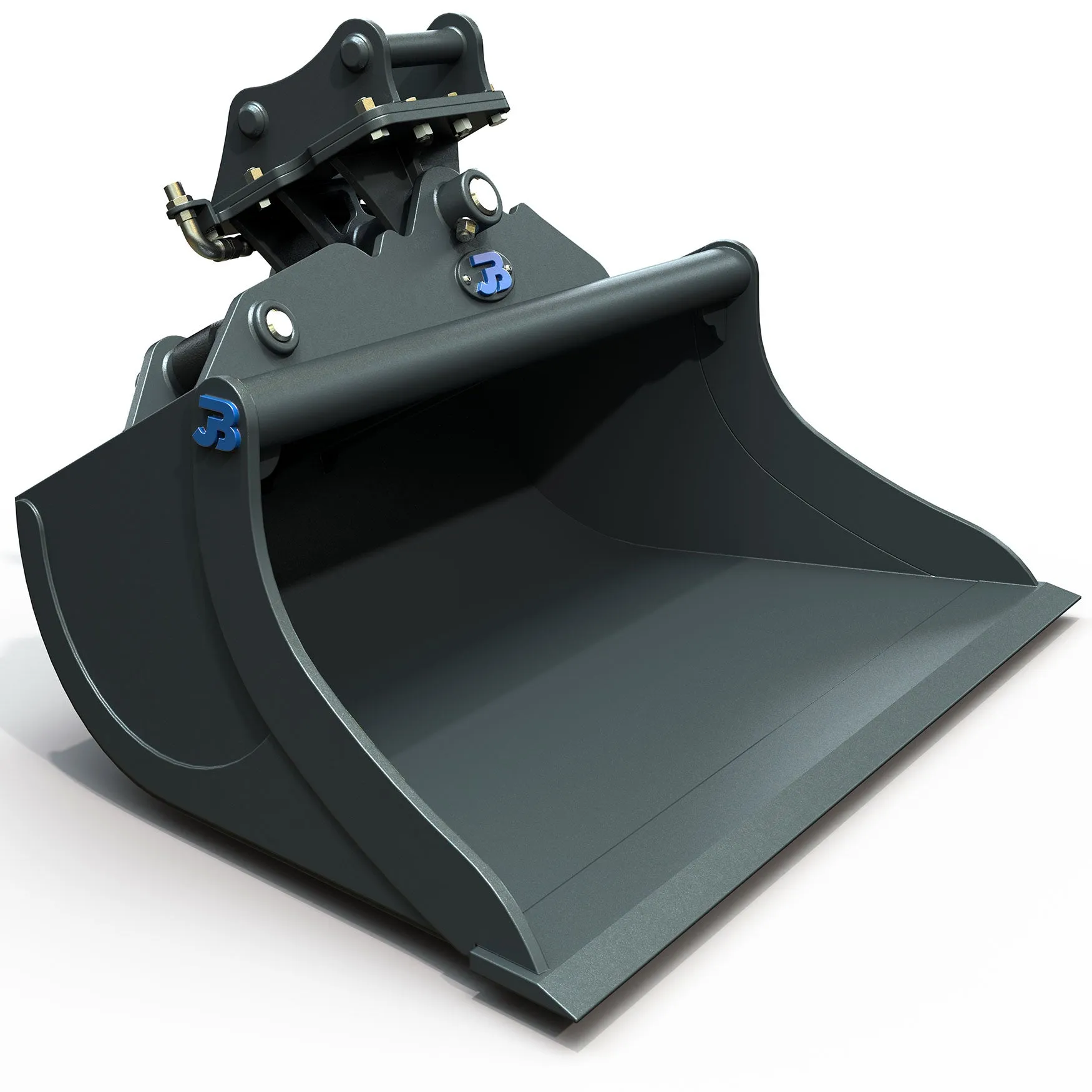

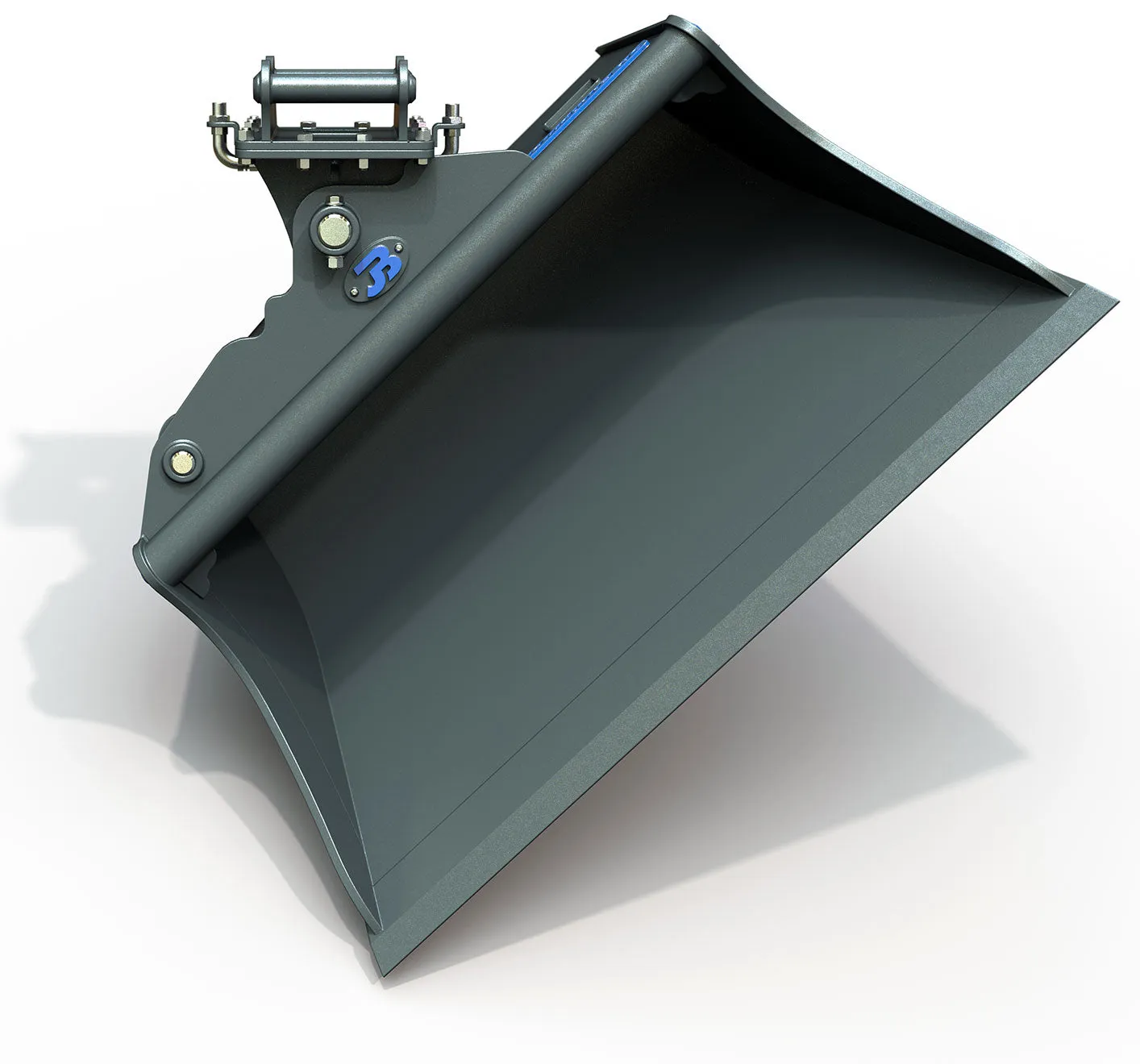

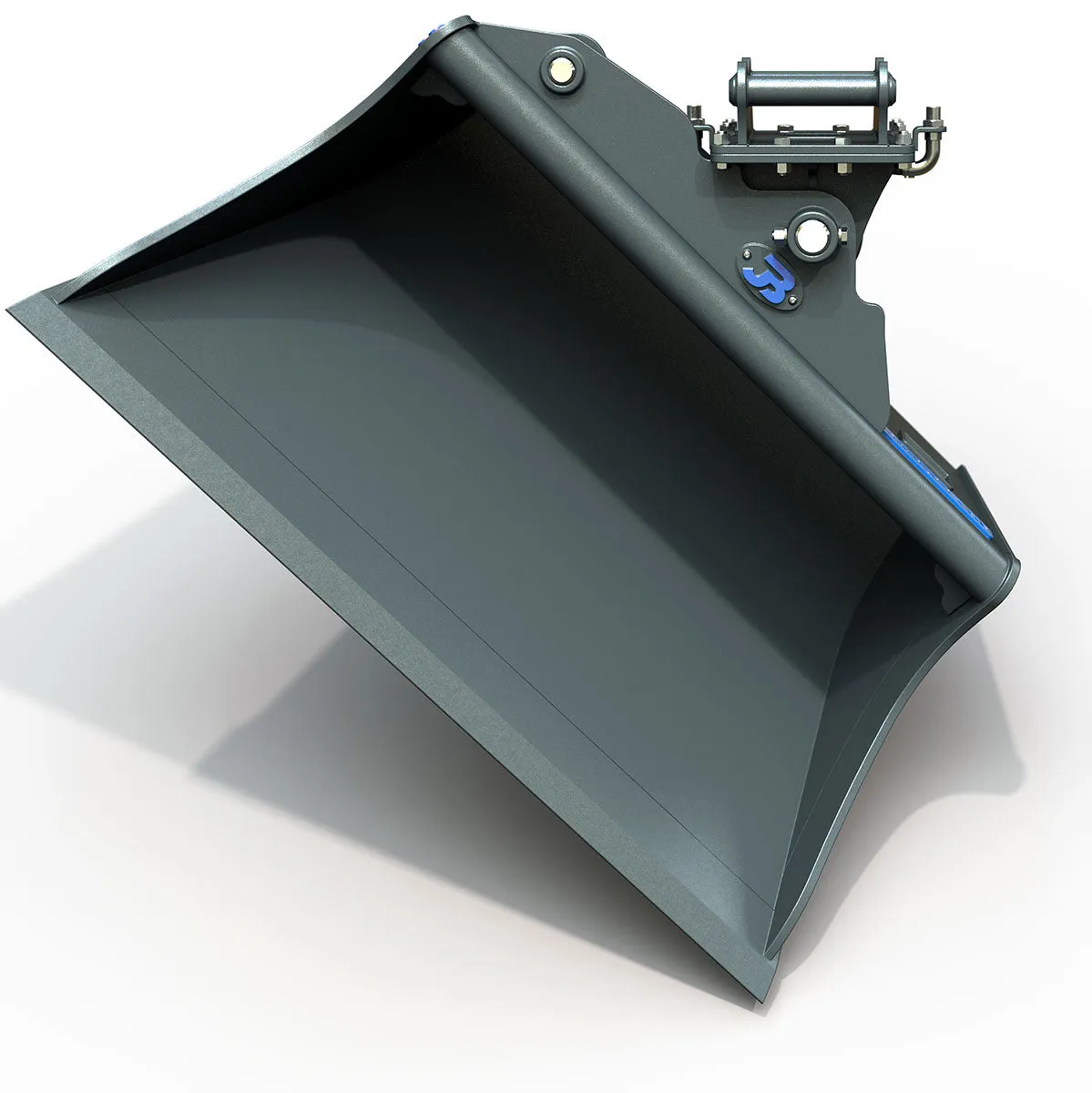

3-4 Tonne Scandinavian Excavator Hydraulic Tilt Bucket
A quality excavating and landscaping attachment for mini and micro excavators. This Scandinavian style hydraulic tilt bucket features a high quality hydraulic cylinder, hardened HB400 cutting edges and high tensile steel throughout.
Scandinavian tilt buckets are increasingly popular due to their profiled and angular design, which both increases bucket volume and enables greater accuracy when pouring material at an angle or working against obstacles such as a fence or wall.

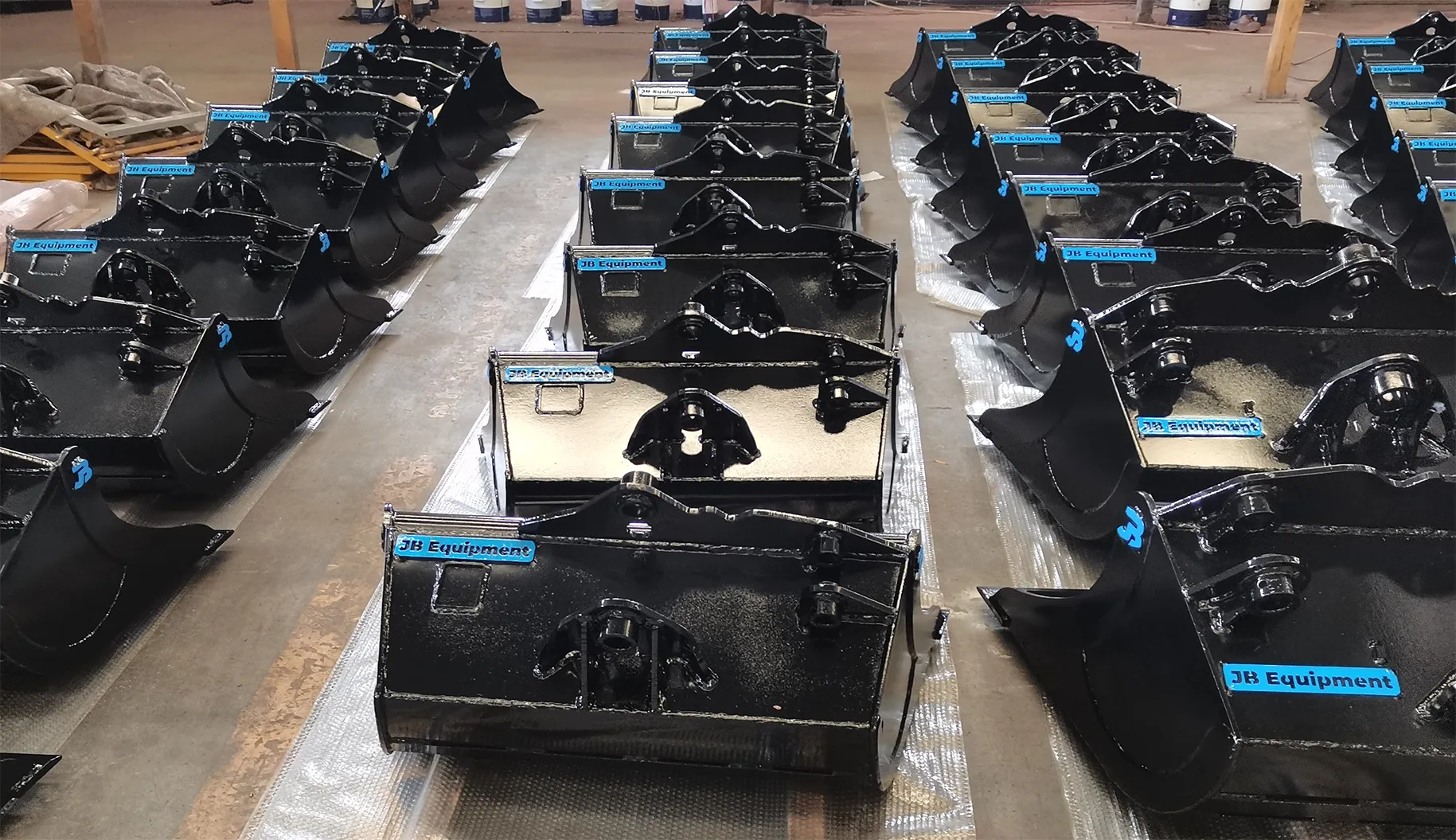

This bucket can often be supplied from pre-fabricated stock to minimise the delivery and lead time.
Supplied with pins to fit your excavator - simply specify your excavator above when ordering.
Bolt on Headstock - Pins will be bolted onto the top (as shown). This is handy if you're considering changing excavator in the future or using between multiple excavators. Additional charge applies.

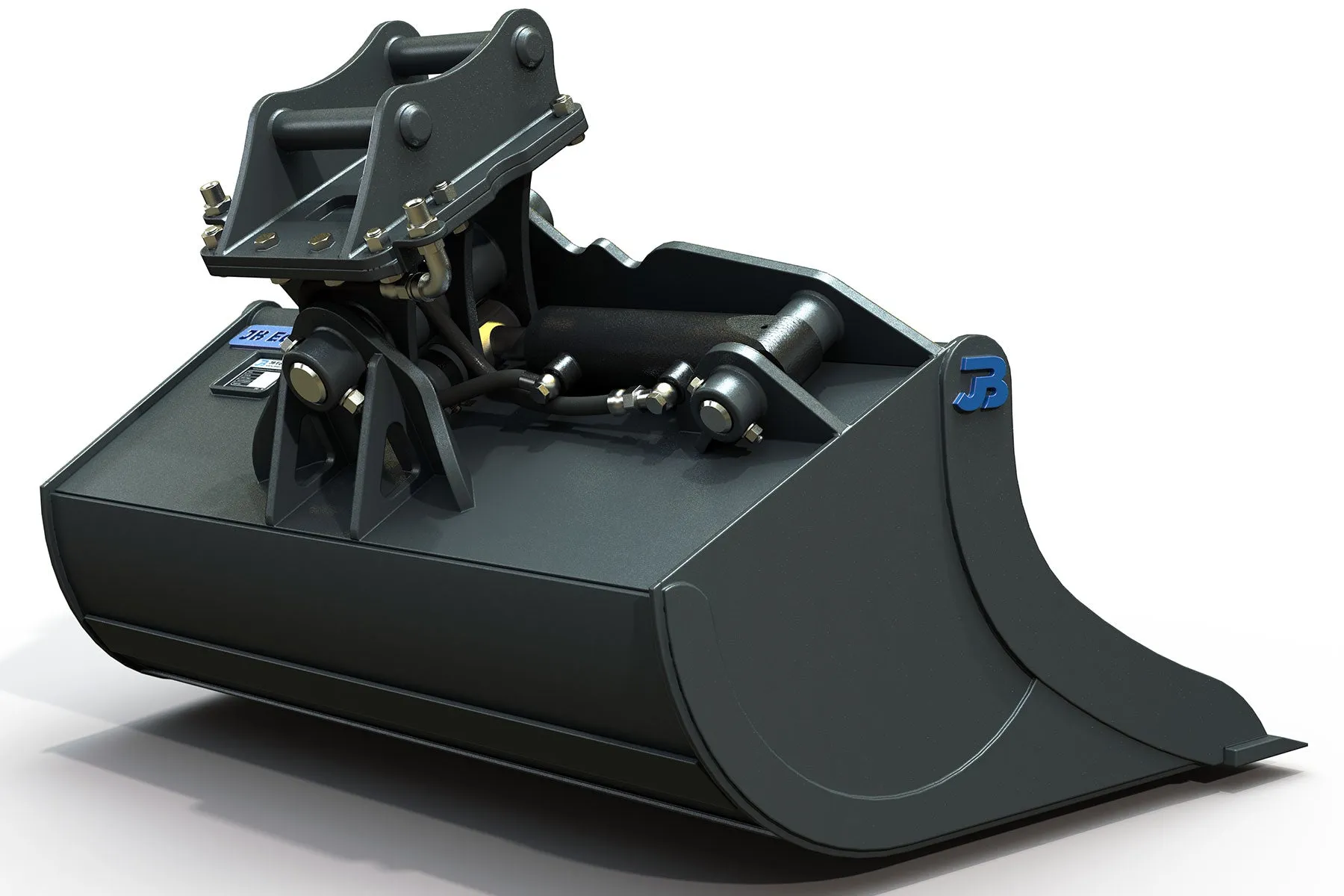

Both single and twin cylinder Scandinavian are pre-installed with on board hydraulic pipe work and two simple, easy to reach bulkhead BSP fittings adjacent to the linkage.
Please Note: This attachment is not supplied with hoses to connect from the bucket back to the excavator. These can be ordered separately by visiting our product pages.
Click on the interactive image above for specific details and benefits. Alternatively, please find other information below.
Specifications
Models available to suit 1 - 25 tonne excavators, with larger models available on request.
This page is for the 3-4 tonne excavator hydraulic tilting bucket - model STB-3S to suit 3-4 tonne excavators
STB-3S Features
- Typical lead time (can vary): 1-14 days
- Includes standard 2 pin excavator linkage
- Bolt-On Headstock
- Check valve for cylinder stability
- Hydraulic ports positioned by the linkage for minimal damage potential
- Standard BSP hydraulics
- Ideal for landscaping
- Scandinavian design
- 45 degree tilt in both directions
- Check valve fitted
